Modular 5.12 kWh storage
The MD48-100-LCD is marked 51.2 V / 100 Ah. The table lists both nominal and usable energy at 5.12 kWh; confirm usable capacity and operating depth of discharge with AM2.
Home energy storage
Product imagery from the supplied AM2 brochure.
Built to grow with your energy needs

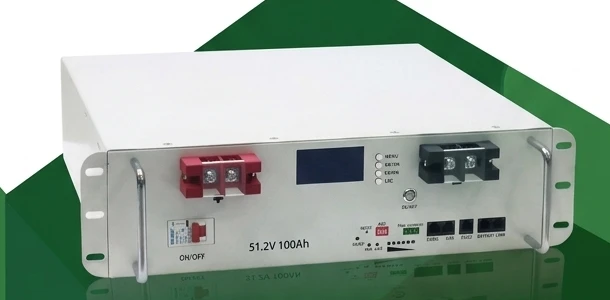

MD48-100-LCD
Rack-mounted energy storage
Modular 5.12 kWh residential energy storage in a 19-inch rack format. CAN and RS485 communication support integration with compatible inverter systems.
5.12 kWhenergy capacity
51.2 Vnominal voltage
Price on requestA quotation tailored to your requirements
Add your products, then send one itemized enquiry to AM2 on WhatsApp. No online payment is required.
- 5.12 kWh nominal energy per module
- 19-inch rack-mounted design with LCD
- CAN and RS485 communication
- Up to 15 parallel modules, subject to system approval
ENGINEERED FOR EVERYDAY ENERGY
Get to know your power.
A 19-inch modular rack battery for compatible residential energy-storage systems. LiFePO4 chemistry, an LCD interface and battery communication support a scalable installation with a compatible hybrid inverter.
A rack-based installation
The brochure describes a 19-inch modular design with an LCD interface and approximately 44 kg module weight. Confirm the mounting dimensions and rack requirements for your project.
Communication options
CAN and RS485 are listed as standard interfaces. Wi-Fi and BLE are optional; ask whether these options are included in your quotation.
Ready for system expansion
Up to 15 modules in parallel are listed. The printed aggregate capacity differs from the arithmetic total, so the capacity clarification below should be resolved for a multi-module quotation.
APPLICATIONS IN THE BROCHURE
Choose a configuration that matches your equipment. AM2 can help confirm system compatibility.
THE COMPLETE TECHNICAL PICTURE
Every detail. In one place.
Specifications transcribed from the supplied product documentation, with source differences explained below.
01Battery & module
| Model | MD48-100-LCD |
|---|---|
| Chemistry | LiFePO4 |
| Nominal voltage | 51.2 V |
| Capacity on product label | 100 Ah |
| Nominal energy | 5.12 kWh |
| Usable energy (as listed) | 5.12 kWh; confirm usable capacity and depth of discharge |
| Design life | 10 years; not a stated warranty term |
| Format | 19-inch modular rack design with LCD |
| Dimensions (W × H × D, as listed) | 440 × 420 × 133 mm; confirm drawing and dimension order for rack fit |
| Weight | Approximately 44 kg |
02Electrical & expansion
| Operating voltage range | 43.2–56.8 V |
|---|---|
| Recommended charge / discharge current | 50 A / 50 A |
| Maximum charge / discharge current | 100 A / 100 A |
| Maximum parallel modules | 15 |
| Printed parallel-system energy | 75.8 kWh (brochure figure; requires clarification) |
| Calculated nominal total for 15 modules | 15 × 5.12 kWh = 76.8 kWh; confirm the approved system capacity |
| Communication interfaces | CAN / RS485 |
| Optional interfaces | Wi-Fi / BLE |
| Compatible-inverter list (as printed) | BST / SMA / Deyo / GOODWE / Growat / Solau / Solic / Viction / Votronic; confirm exact brand, model and protocol |
03Operating environment & documentation
| Charging temperature | 0°C to 50°C |
|---|---|
| Discharging temperature | −10°C to 55°C |
| Storage temperature | −20°C to 45°C |
| Humidity | 5–95% RH, non-condensing |
| Altitude | ≤4,000 m |
| Ingress protection | IP20 |
| Certifications listed in brochure | UN38.3 / EN61000-6-1 / EN61000-6-3 / IEC62619; request applicable documents |
DIRECTLY FROM THE DATASHEET
A closer look.
Inspect the original technical drawings and diagrams. Select any figure to enlarge it.

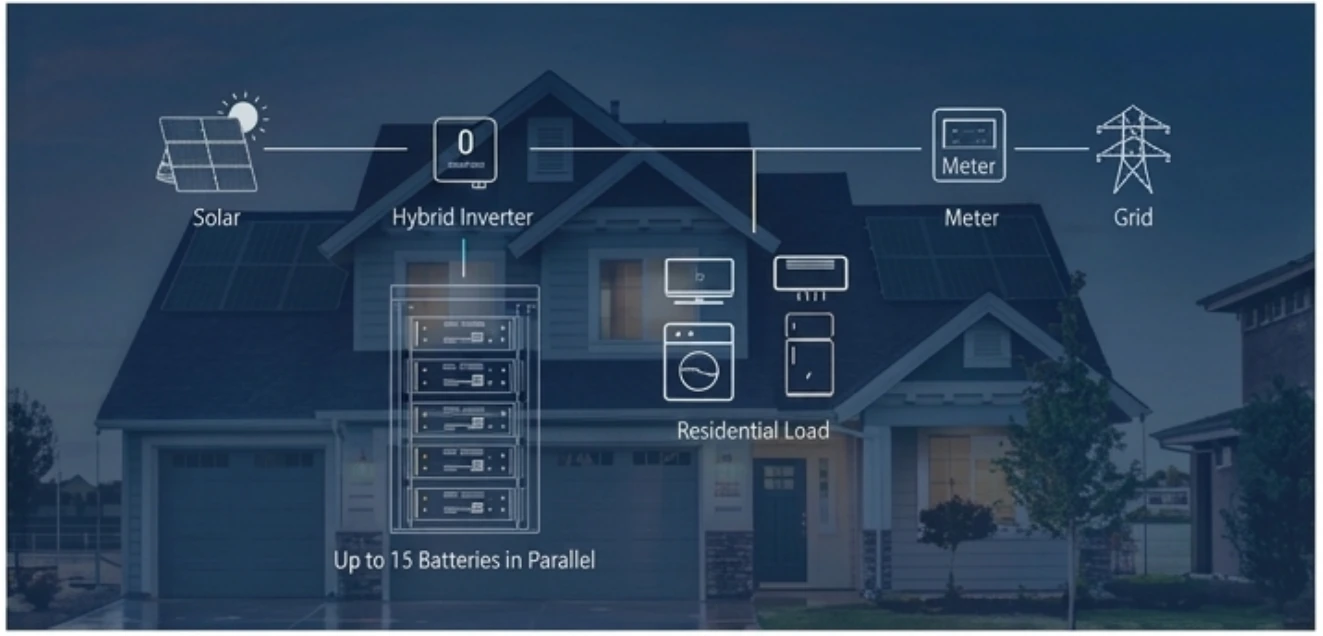

View full size A connected energy-storage system
Original brochure system diagram: solar, hybrid inverter, meter, grid, residential load and up to 15 parallel batteries. Components shown are illustrative; confirm equipment and compatibility.
A CLEARER CONVERSATION
Know before you choose.
Source notes and details to confirm with the AM2 team.
Parallel capacity discrepancy
The brochure prints “Max. 15 in parallel (75.8 kWh)”. Fifteen modules at the listed 5.12 kWh nominal energy calculate to 76.8 kWh. The published figure is retained above; AM2 should confirm the actual system configuration and capacity.
Confirm rack fit and inverter support
Dimensions are reproduced in the brochure’s stated W × H × D order. The inverter names are also transcribed as printed, including their spellings. Request a dimension drawing and confirmation of your exact inverter model, firmware and communication protocol.
Documentation and service life
The listed standards are brochure references, not independently verified test reports. Request the applicable certificates. The 10-year design-life statement does not establish a warranty term.

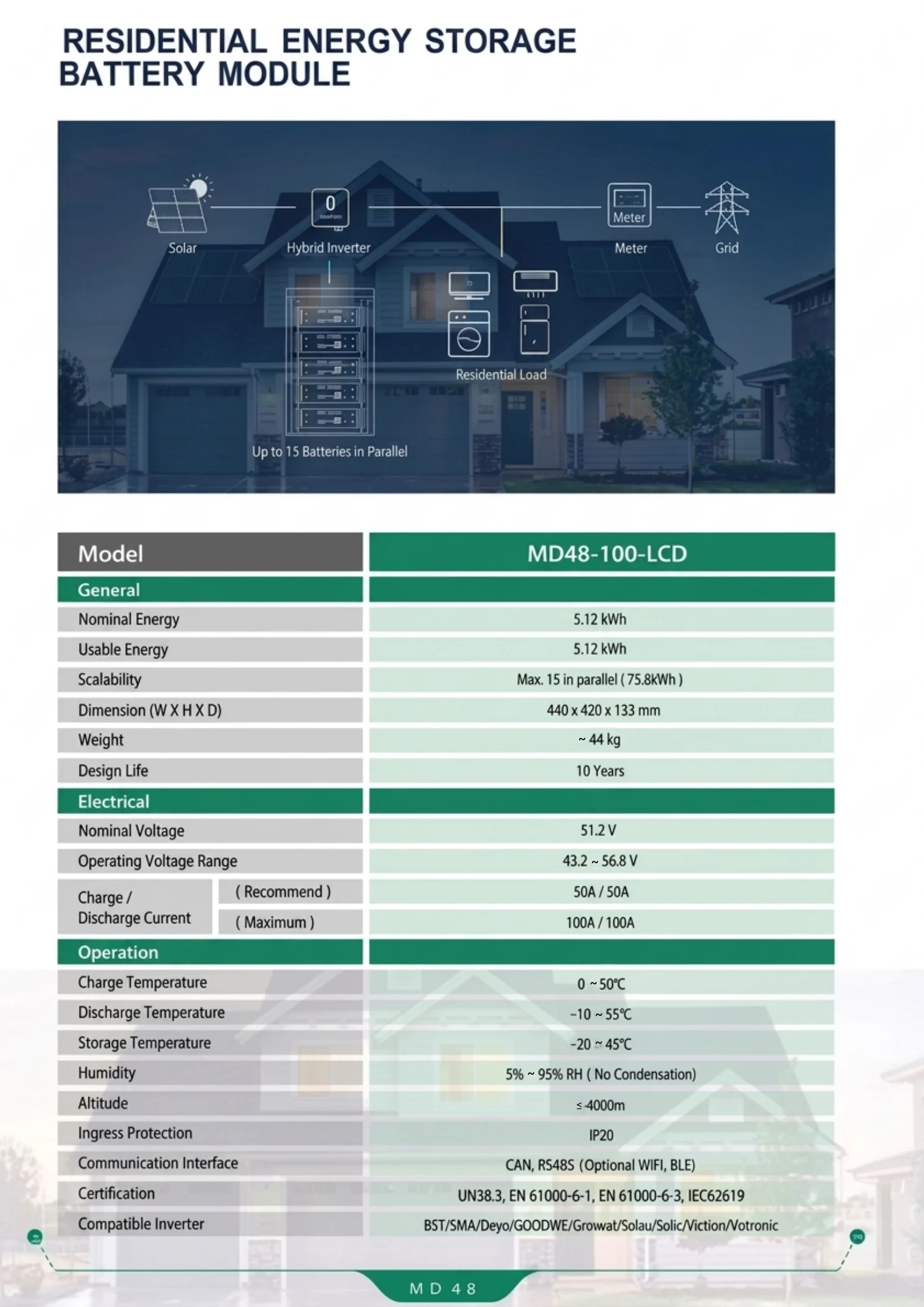

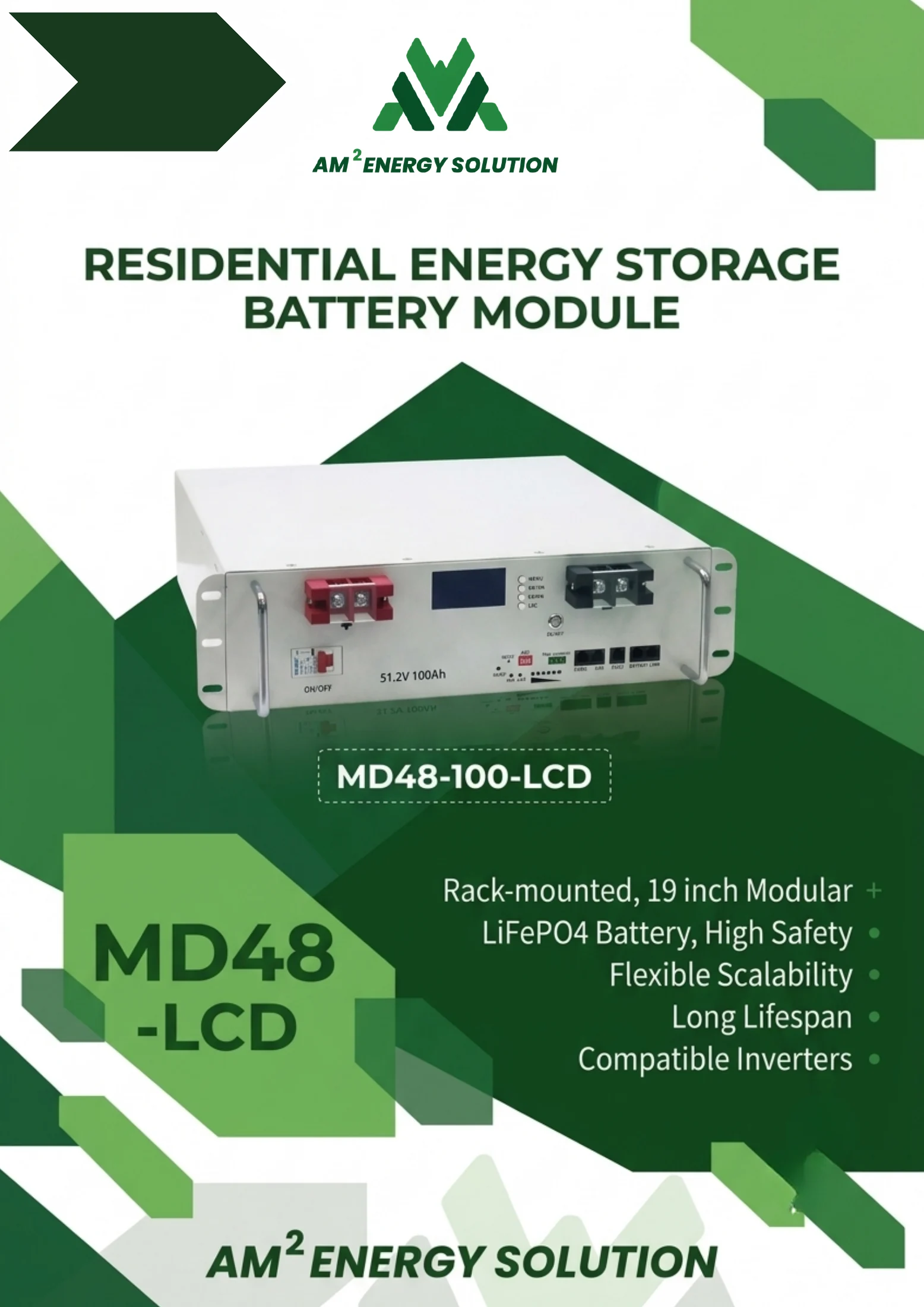

THE ORIGINAL DOCUMENTATION
Read every page.
View the supplied brochures here or save the original PDFs for your project.
KEEP EXPLORING
More from the collection.

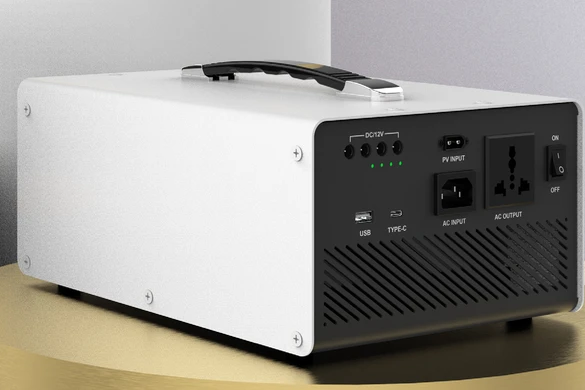

Portable power station
TS1000
Your everyday essentials. A little more independent.
896 / 1004 Whenergy capacity
300 WAC output
Price on request

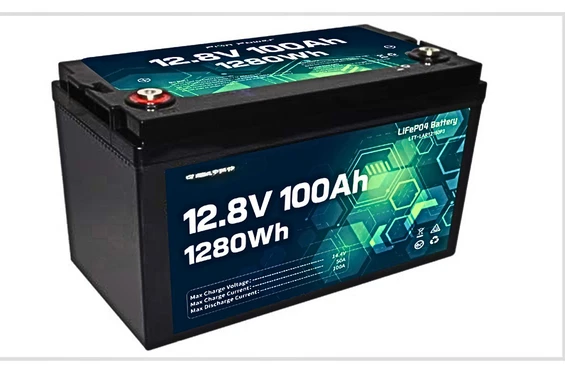

LiFePO4 replacement battery
12.8 V · 100 Ah
Compact size. Everyday energy.
1.28 kWhenergy capacity
4,000+rated cycles¹
Price on request

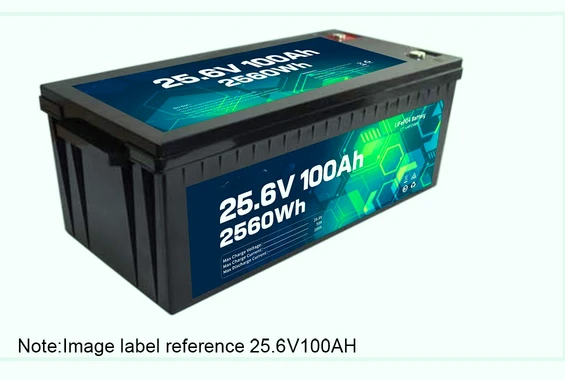

LiFePO4 replacement battery
